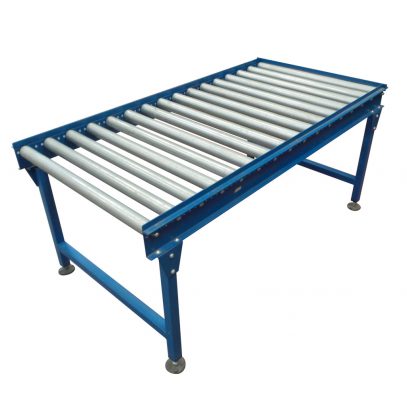

Gravity roller conveyors are ideal for low-cost product transportation within production & warehouse environments
These medium-duty gravity conveyors are manufactured from fabricated powder coated mild steel frames and fitted with high quality 50mm diameter mild steel zinc plated gravity rollers.
They have a load rating of 100 Kg per meter.
Lengths of up to 3 metres are available to buy online today, please contact us if you require longer lengths.
Please use the ‘Ask a Question’ form if you have any questions about this product or would like a bespoke product quotation.
What is Roller Pitch?This is the distance between the centre of each roller, for example, the 150mm pitch will mean the rollers are spaced further apart, whilst for the 75mm pitch they are closer together.
This is why the price increases as the pitch decreases, a smaller pitch means more rollers will fit into the frame. More rollers may be necessary to allow the conveyor to hold more weight, or move smaller items.
We recommend that a minimum of 3 rollers be touching the product for the best functionality.
|Length||Up to 3 metres available to buy online
Please contact us for longer lengths
|Frame||Mild steel frame, powder-coated in Blue (RAL 5010)|
|Rollers||50mm diameter Mild Steel Zinc Plated|
|Roller Pitch||Choose from 150mm / 100mm / 75mm / 52mm|
|Load Rating||100kg per metre|
|Supports||Welded steel H support stands with threaded levelling feet (+/- 50mm adjustment)
Two supports for 1000mm, 1500mm and 2000mm length conveyors
Not exactly what you need?
We are a UK conveyor – this allows us to make fully bespoke products to suit your exact requirements.
Are you looking for something a little different such as:
- Castors / wheels for added mobility
- Adjustable guides
- Twin tier gravity conveyors
- Gravity roller bends
- Ball table sections
- Conveyor systems
- Height adjustment
- Lift up gates
