Ball Transfer Table

From £144

Ball transfer tables are ideal for product moving and for loading or feeding machines

  • Range of ball table sizes available
  • 22mm diameter zinc plated balls
  • Ball pitch from 150mm to 52mm
  • Square or diamond ball layout
  • Add support stands with adjustable feet or castors
  • Delivered fully assembled and ready for work

Available

SKU: BLLTAB Categories: ,

Description

Ball tables offer omnidirectional movement at a lower cost than a complex conveyor system

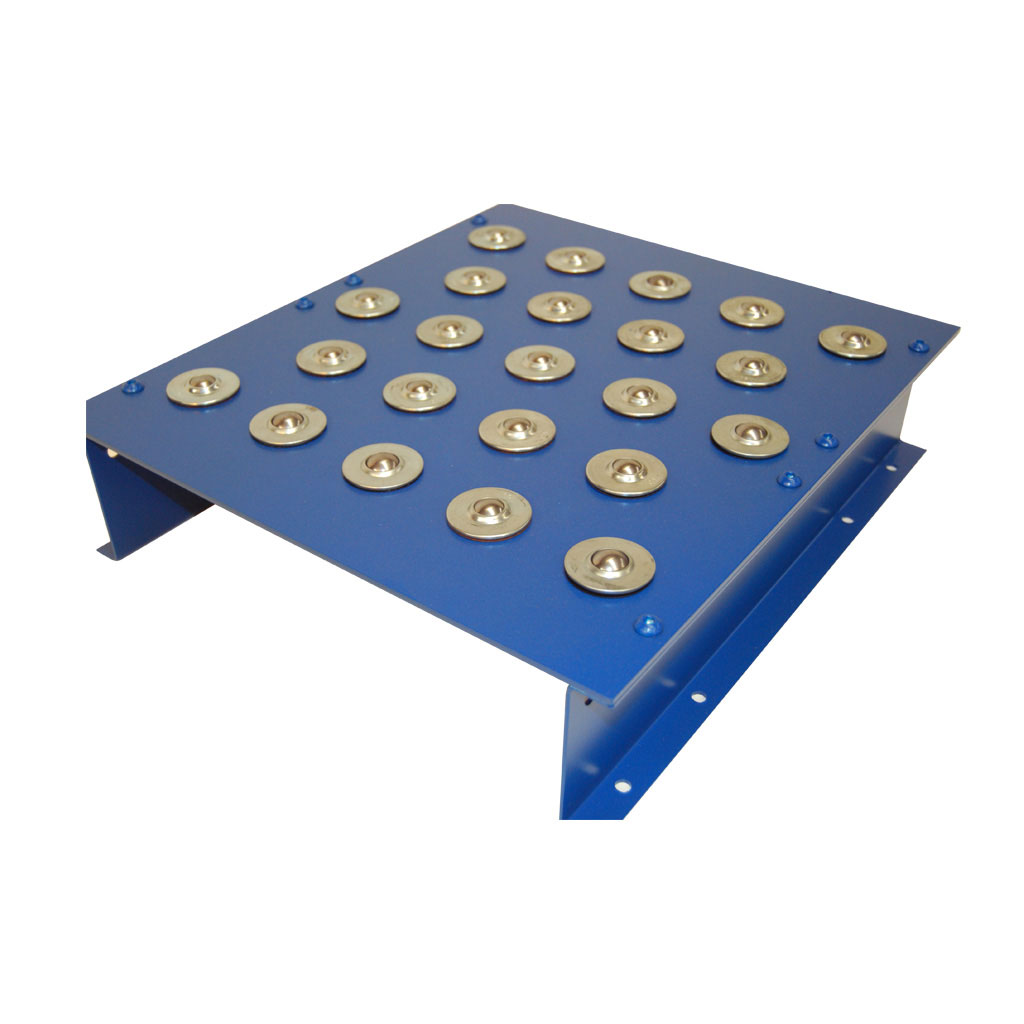

These Ball Transfer Tables are manufactured from a 4mm thick mild steel plate in a RAL5010 durable powder coat finish and utilizing 22mm diameter zinc plated balls.

These tables are sturdy, robust and reliable enough to withstand years of constant use.

The standard ball pitch is 150mm, smaller pitches can be selected but this will increase cost due to the increased number of balls used.

The layout can be set to either Diamond or Square which doesn’t affect the cost.

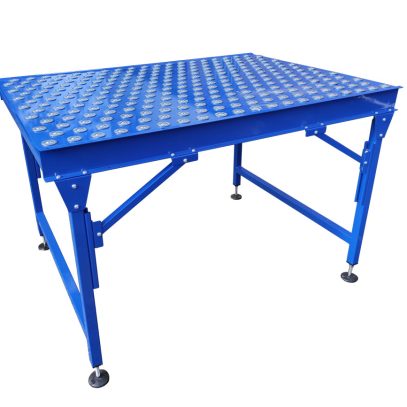

Support stands can be added, with or without swivel lockable castors set to your required height.

Please use the ‘Ask a Question’ form if you have any questions about this product or would like a bespoke product quotation.



What is Ball Pitch?
This is the distance between the centre of each ball, for example, the 150mm pitch will mean the balls are spaced further apart, whilst for the 52mm pitch they are closer together.
This is why the price increases as the pitch decreases, a smaller pitch means more ball units will fit into the table. More ball units may be necessary to allow the table to hold more weight, or move smaller items.



Specification

Construction 4mm thick steel plate top surface, powder-coated in RAL5010
Assembly Delivered fully assembled ready for use
Ball Units 22mm diameter zinc plated balls
Ball Pitch 150mm, 100mm, 75mm, 52mm
Ball Unit Layout Square or diamond
Support Detail Welded H shaped supports with 50mm height adjustment in feet
Optional swivel lockable castors
Dimensions (table top area)
  • 300mm x 300mm
  • 450mm x 450mm
  • 600mm x 600mm
  • 600mm x 300mm
  • 750mm x 450mm
  • 800mm x 800mm
  • 900mm x 600mm
  • 1000mm x 800mm
  • 1000mm x 1000mm
  • 1200mm x 1000mm



Not exactly what you need?

We are a UK conveyor & ball table manufacturer – this allows us to make fully bespoke products to suit your exact requirements.

Are you looking for something a little different such as:

  • More ball pitch options
  • Different ball configurations
  • Different materials used in the ball units
  • Non-standard shaped tables
  • Conveyor integration
  • Integration into workstations



This has autofilled the link of the page you are currently on so we know which product you're interested in

We manufacture to order -- Please include desired sizes & add ons if you would like a quote for a bespoke product.

Delivery Information

All products are collected from our East Yorkshire factory before being delivered to you

Please consider your access restrictions, including door sizes etc prior to placing an order.

Our team will arrange the delivery date with you via a telephone call or email, please ensure there will be somebody available to take the delivery at the given time & date.

It is the customers’ responsibility to safely unload items from our delivery vehicles.

Please speak to a member of our team if you have any questions regarding deliveries.
